FXT ARES 5.8GHz PIT/25mw/200mw/600mw/1W VTX w/ Smart Audio

Out of stock
  • Category: ANTENNAS + VTX
  • SKU: 10907



Out of stock


The FXT ARES 5.8Ghz 1W w/ Smart Audio is a professional FPV video transmitter that includes PIT mode, which allows you to power up your quad with zero interference!

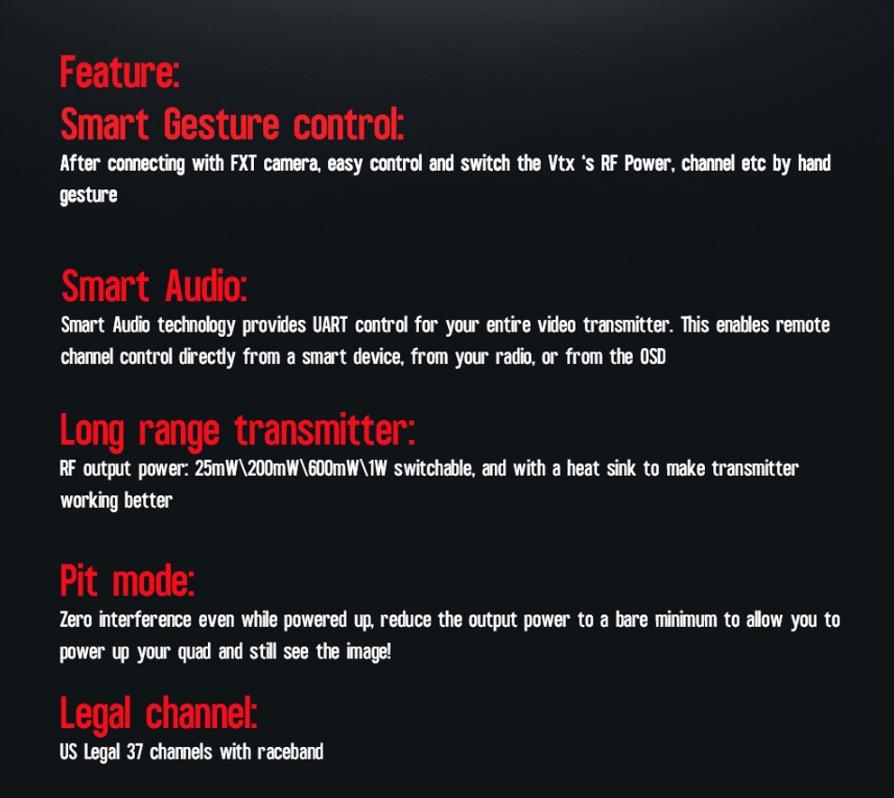

  • Smart Gesture Control
  • Smart Audio
  • Long-Range Transmitter
  • Pit Mode
  • Legal Channel

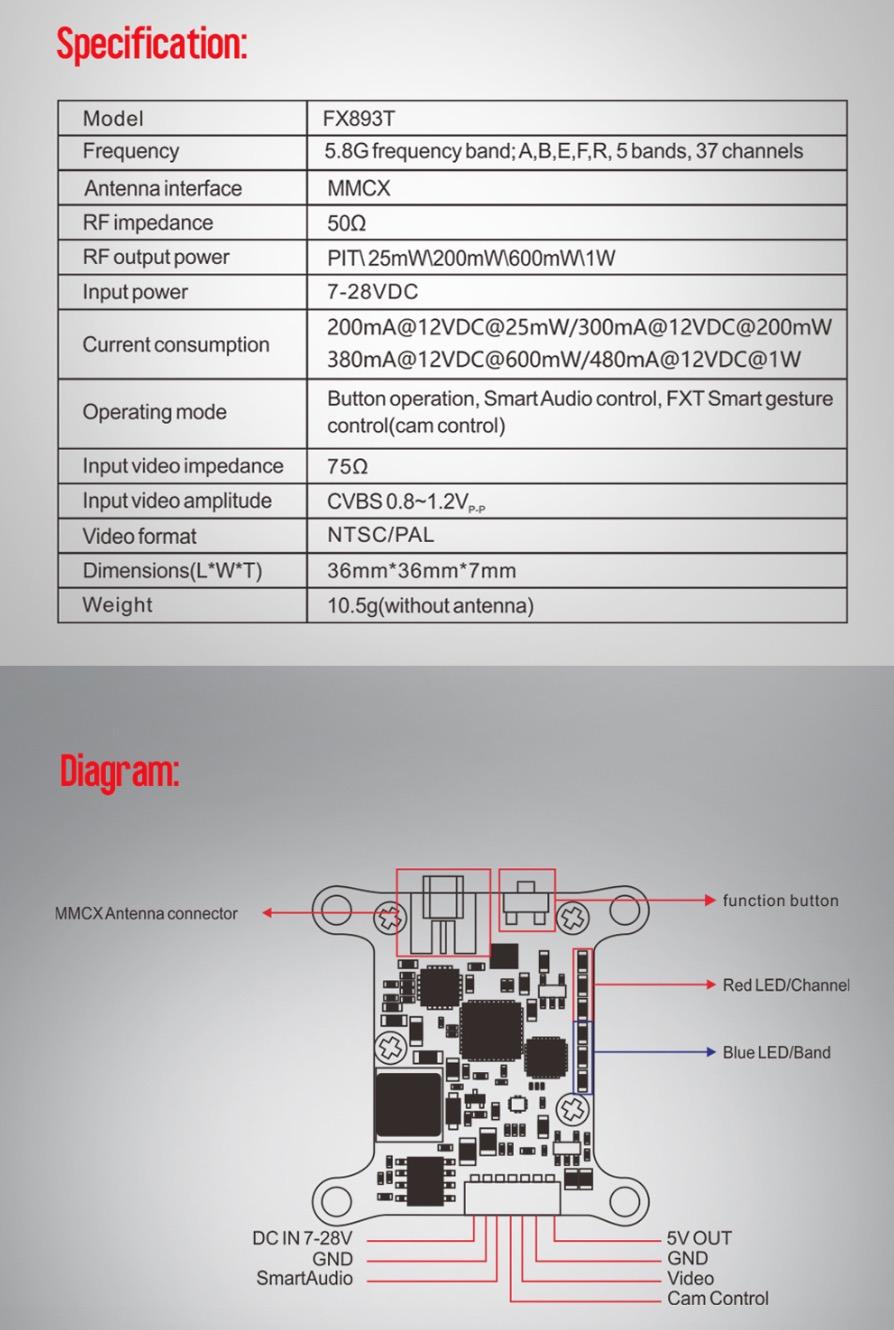

  • Frequency: 5.8Ghz

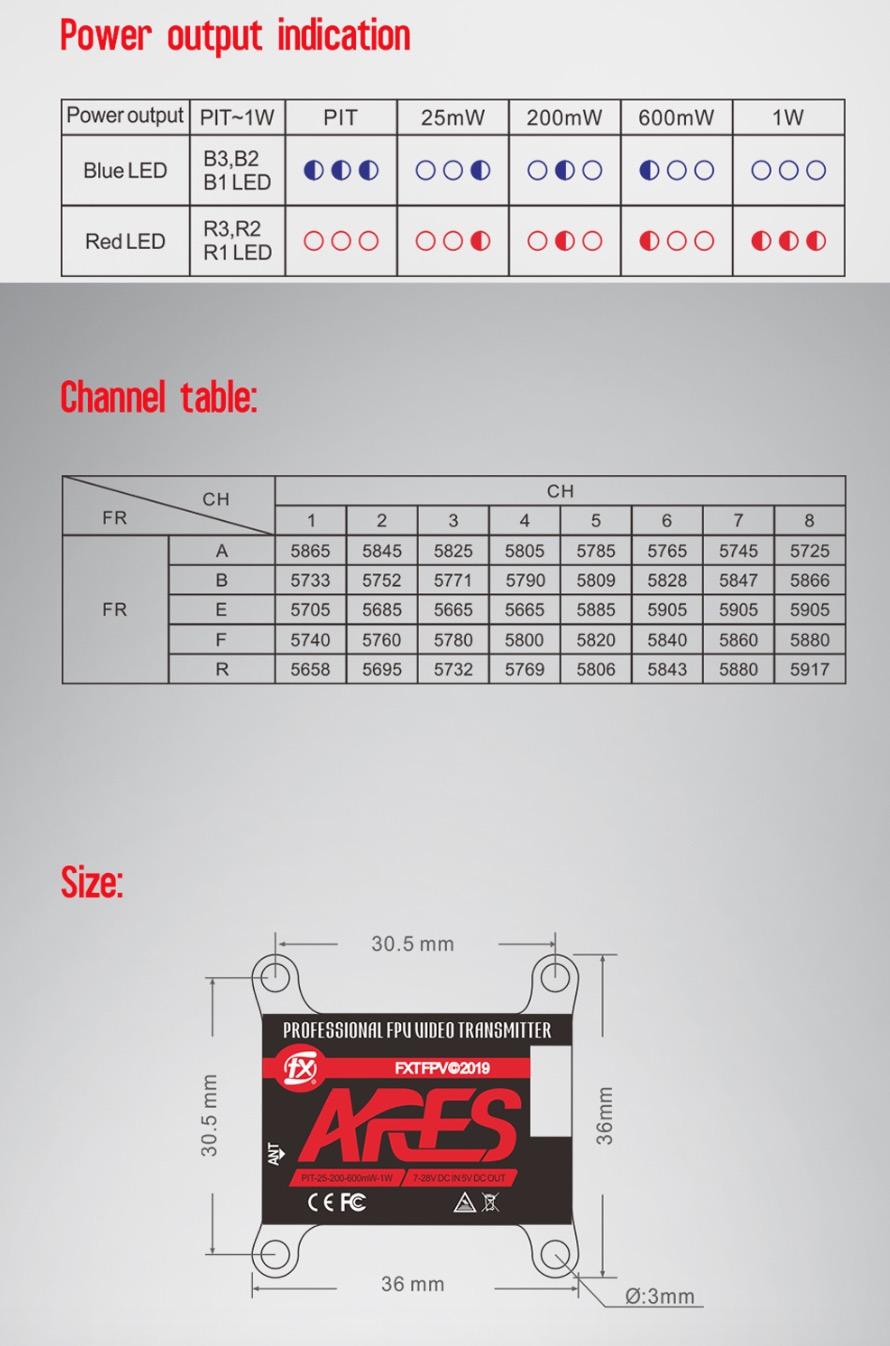

  • Frequency band; A, B,E, F, R 5 frequency groups, 37 transmission channels
  • Antenna Interface: MMCX
  • RF impedance: 50Ω
  • RF output power: PIT\ 25mW\200mW\600mW\1W Input power 7-28VDC
  • Current consumption: 200mA@12VDC@25mW/300mA@12VDC@200mW 380mA@12VDC@600mW/480mA@12VDC@1W
  • Operating mode: keyboard operation, remote operation, camera control
  • Input video impedance: 75Ω
  • Input Video Amplitude: CVBS 0.8~1.2VP-P
  • Video Format: NTSC/PAL
  • Dimensions: 36x36x7mm
  • Weight: 10.5g (without antenna)


  • 1 x FXT ARES 5.8GHz PIT/25mw/200mw/600mw/1W VTX w/ Smart Audio
  • 1 x MMCX to SMA Adapter Cable
  • 1 x Wiring Harness
  • 1 x Manual
