Lumenier QAV-R

  • SKU: 6520

Price:AU$113.75 AU$35.00

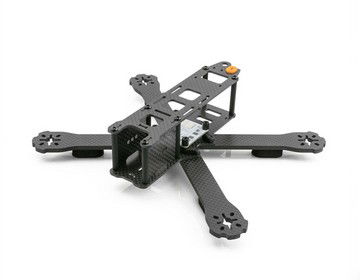

QAV-R FPV racing quadcopter airframe is a light weight, super stiff, finely tuned airframe designed for high performance FPV Drone Racing. The airframe implements 4mm thick removable arms and supports various arm sizes supporting 4", 5", and 6" propellers. Lumenier's QAV-R brand comprises a number of highly specialized components for the FPV Drone Racer. This newest version of the QAV-R features a stronger carbon fiber bottom plate and thicker 2mm top plate, giving you the best of both durability and performance.
The Lumenier QAV-R quad deploys and improves the removable center X arm position made popular in pro pilot circles by the Alien racing quad and further refines the popular center section of the Lumenier QAV210/180 with a number of key innovations. To enable extremely fast arm changeovers in race pit settings, the QAV-R frame implements custom developed, precision machined aluminum mounting hardware. This hardware allows a pilot to remove an arm by removing 3 screws from the bottom of the airframe without the need to worry about holding nuts or other hardware on the inside of the airframe. One 2mm Allen tool is all that is needed to completely remove an arm within seconds. The custom aluminum hardware also stiffens the frame core and eliminates the need for captive nuts that would have to be press fit into the Carbon Fiber. No structural connection is made between the arm fasteners and the power distribution board to avoid shorts during severe crashes. The bare QAV-R frame kit weighs only 106g (with PDB, but no other electronics or motors), significantly lighter than the competition.

Recommended (not included):

brushless motor: 1806~2206 (KV2000~2300)

brushless esc: 10~20a

flight controller:mini CC3D/ NAZA32/ F3

battery cells:3S  1500~2200mah

Propellers: 5045,5030 (5 inch)

Image transmission: 5.8G 200~600wm 32CH



Item Packing:

QAV-R 220 quadcopter frame * 1 set (unassembled)
