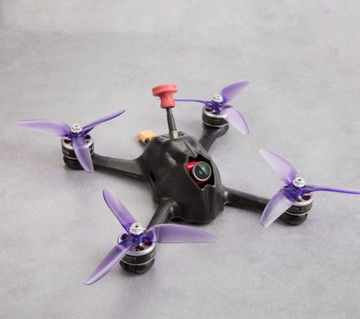

IFlight Rhino 5"

  • SKU: 4543

Price:AU$41.00 AU$23.00




We are very happy to introduce our new carbon molded frame Rhino5.

iFlight Rhino, another innovative masterpiece which is well-rounded FPV Racing quadcopter frame, glass hard, good looking and high quality with extraordinary anti-pressure ability and excellent racing ability.

Many material have been tested before and finally Twill has been chosen. Carbon fiber injection molding process adopted makes the strength comparable with steel.The whole mechanical structure has been taken into consideration. Even if you stand on it there won't be deformation.

Unified arm & body design, 3K pure carbon fiber bottom plate makes the frame reach the peak of strength.The hole on the hover hood is designed for mounting camera,3 holes for leading antenna out and multiple long holes for forming a convection zone. streamlined design unified arm and body ensure the frame extreme low air resistance and high intensity.

Equipped with 3D printed camera mount, simple and durable, compatible with the mount that comes with the camera, Rinho can protect and fit most camera like RACECAM, Hs1177, Hs1190, swift,OWL Plus etc. Camera angle 20°-80°adjustable.


- Product Name: iFlight Rhino
- Weight: 115g
- Wheelbase: 215mm
- Frame thickness: Part 9-12mm


- 1.Twill material, Carbon fiber injection molding process ,strength comparable with steel
- 2.Unibody Shell Structure
- 3.Super big room body, freely choosing electronics
- 4.35 to 65°ratcheting camera angle adjustment in 3° increments
- 5.12.9 Grade YFS Screw
- 6.Streamlined body design
- 7.Super thin composite carbon fiber and 100% carbon fiber arm,reduce the wind resistance

Suggested Combination(Not included):

- Flight Control:F3/iFlight F4 F7 (Mounting Holes 30.5*30.5mm)
- Motor:2204/2205/2206/2305/2306/2506
- ESC:30.5*30.5 35A 4IN1
- VTX:iFlight FORCE 5.8G 48CH 25/200/600mW
- Prop: 5 inch
- Battery: 3S-6S

Package included:
- 1 pc * Unibody Shell
- 1 pc * Main Bottom Frame Plate (4mm)
