KISS Flight Controllers

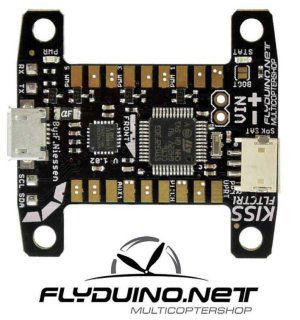

KISS 32-bit Processor Flight Controller Support PPM or Serial RX For Multirotor Racing

KISS 32-bit Processor Flight Controller Support PPM or Serial RX For Multirotor Racing

1. Highest quality components
2. Micro USB connector for programming
3. Provides high quality flight control using the powerful F3 processor along with top of the line hardware
4. Supports PPM or Serial RX (including Futaba, FrSky, S.BUS). A signal inverter is already included for S.BUS.

Please note: Baseflight firmware is not supported, and PWM input for individual channels is not supported.

PCB: Have

Weight: 6g

Output: 5v 1.0A

Input: Up to 26v (6S lipo)

RX Voltage Output Selectable: 3v/5v

Gyro/accelerometer: MPU6500  MEMS

Processor: STM32F303RCT6(256kB flash) 32-bit

Mode for bootloader + software: STM32 DFU

Dimensions: 36x36x6mm (includes USB in height)

Mounting Holes: 30.5mm square to center of holes

Item Packing

1x KISS Flight Controller KISS  firnware X 1
