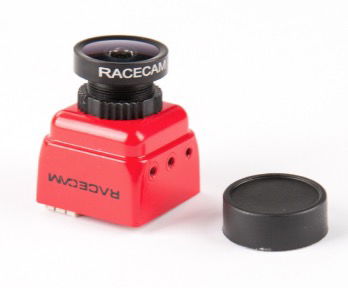

Iflight - RaceCam R1 MINI CCD FPV Camera- RED (NTSC & PAL)


SALE
  • Category: CAMERA + MICRO
  • SKU: 33090

Price:AU$47.75 AU$38.20

SYSTEM:


BUY NOW!

Description

FEATURES:

*Super low latency
*Wide voltage range
*No ripple distortion
*Quick electronic shutter
*Best nightvision performance

SPECS

Model:RaceCam R1
Image Sensor: 1/3" CCD Sensor
Horizontal Resolution: 600 TVL
TV System: NTSC/PAL
Synchronization Internal Ratio: 4:3
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio >60dB (AGC OFF)
Video Output: CVBS
Lens 2.3mm ,FOV 130°
Lens Screw Diameter: M10
Min. Illumination: 0.01Lux@F1.2
Auto Gain Control: YES
BLC: YES
FLY OSD Voltage/time/horizontal line/title
Camera OSD: YES
WDR: D-WDR
DNR: 2 DNR
Day/Night: Auto/Color/B&W
Connector: Molex PicoBlade 1.25mm 4P
Wide Power Input: DC 5-40V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Dimensions: 22mm*22mm*27mm
Weight: 12g (N.W.)/ (G.W.)

Package Included

1 x RaceCam R1 600TVL Camera
1 x 5D-OSD Menu Board
1 x ABS+PV Bracket
1 x Aluminum Bracket
1 x 4pin FPV silicone cable (extend into a 2pin joint for OSD board and a 3pin joint for FPV)
1 x Screws set
1 x Manual
