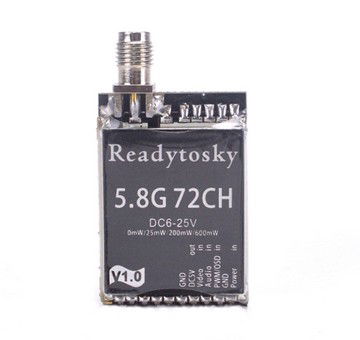

RTS Race Edition 5.8Ghz 72CH


  • Category: ATENNAS + VTX + ACCESSORIES

Price:AU$28.45


BUY NOW!

Description

RTS Race Edition Has designed one of a kind Race VTX. Adjustable 25mw~600mw 72ch transmitter, Video Format: NTSC/PAL, 6-25 OV, Long range distance and stable Performace, Audio Input Impedance: 10K Ohm, FM Modulate

Long transmission distance and stable performace

One switching button to set CH, FR and power

Antenna connector: SMA  connector

Adjustable power--perfect to save the battery, 25mW/200mW/600mW Switchable FPV Transmitter

40 channels: cover A,b,E,F,r bands and all frequencies compatible


Specifications:

Item name: 5.8Ghz 72CH AV Transmitter with Pigtail

Modulate: Wideband FM Modulate

Video Format: NTSC/PAL

Output Impedance: 50 Ohm

Output Power: 25mw: 12,13,14 dBm/ 200mw: 22, 23,24 dBm/ 600mw: 26,27,28 dBm

Antenna connector: SMA male

Operating Voltage: 6-25 V

Supply Current: 25mw: 100 mA/ 200mw: 200 mA/ 600mw: 280 mA

Operating Temperature : -10 +85 °C

Video Band Width: 0-18 MHz

Audio carrier Frequency: 6.5 MHz

Video Input Level: 0.8,1.0,1.2 Vp-p

Video Input Impedance: 75 Ohm

Audio Input Level: 1.0 Vp-p

Audio Input Impedance: 10K Ohm


Item Packing:

1x 5.8G 25mw~600mw 72ch transmitter

1x Connector and cable set

Notice:

Please install the antenna before powering on.
